MODEL 727 FINAL ASSEMBLY - 72700000

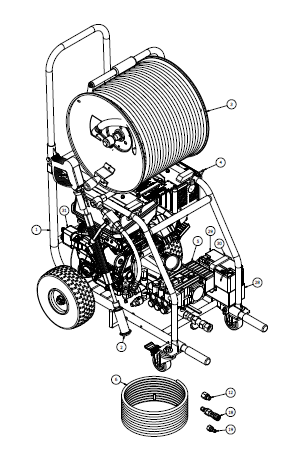

Spartan Tool Model 727 Final Assembly - 72700000

Spartan Tool Model 727 Final Assembly - 72700000

ITEM

QUANTITY

PART NUMBER

DESCRIPTION

1

8

SCREW, HEX HEAD 3/8-16 X 1-3/4

2

2

SCREW, SLOTTED 1/4-20 X 1-3/4

3

12

WASHER, FLAT 5/16 USS

4

4

WASHER, LOCK-SPLIT 3/8

5

4

00763301

WASHER, FLAT 1/4

7

2

NUT, KEP 1/4-20

8

2

44039500

RIVET "POP" 1/8" DIAMETER

9

1

54210403

BUSHING, RED 3/8 M X 1/4 F STL

11

1

71129003

HOSE, 1/4" X 75' GREEN

12

1

13

1

ASSEMBLY, FRAME - 727

14

1

ASSEMBLY, BATTERY HOLDER (INCL. ITEM 6)

15

1

16

1

NOZZLE, CLOSED FOR 9/16" HOSE

17

1

NOZZLE, OPEN FOR 9/16" HOSE

18

1

NOZZLE, CLOSED FOR 3/16" HOSE

19

1

NOZZLE, OPEN FOR 3/16" HOSE

21

1

CABLE, POSITIVE BATTERY

22

1

CABLE, NEGATIVE BATTERY

22

1

HOSE, 9/16 O.D. X 200 FT. (RED)

23

1

72708700

CLAMP, HOSE - BLACK VINYL

24

1

DECAL, HOT EXHAUST PIPE

25

2

PIN, SAFETY SNAP

26

1

ASSY, ADAPTER 3/8 TO 1/4

27

1

28

1

29

1

PLUG, FEMALE 1/4 NPT

30

4

77748000

NUT, STOVER 3/8-16

31

1

SPRAYGUN ASSEMBLY

Documents & Files Available for Download

Model 727 User Manual
