MODEL 758 POWER PACK ASSEMBLY - 75885000

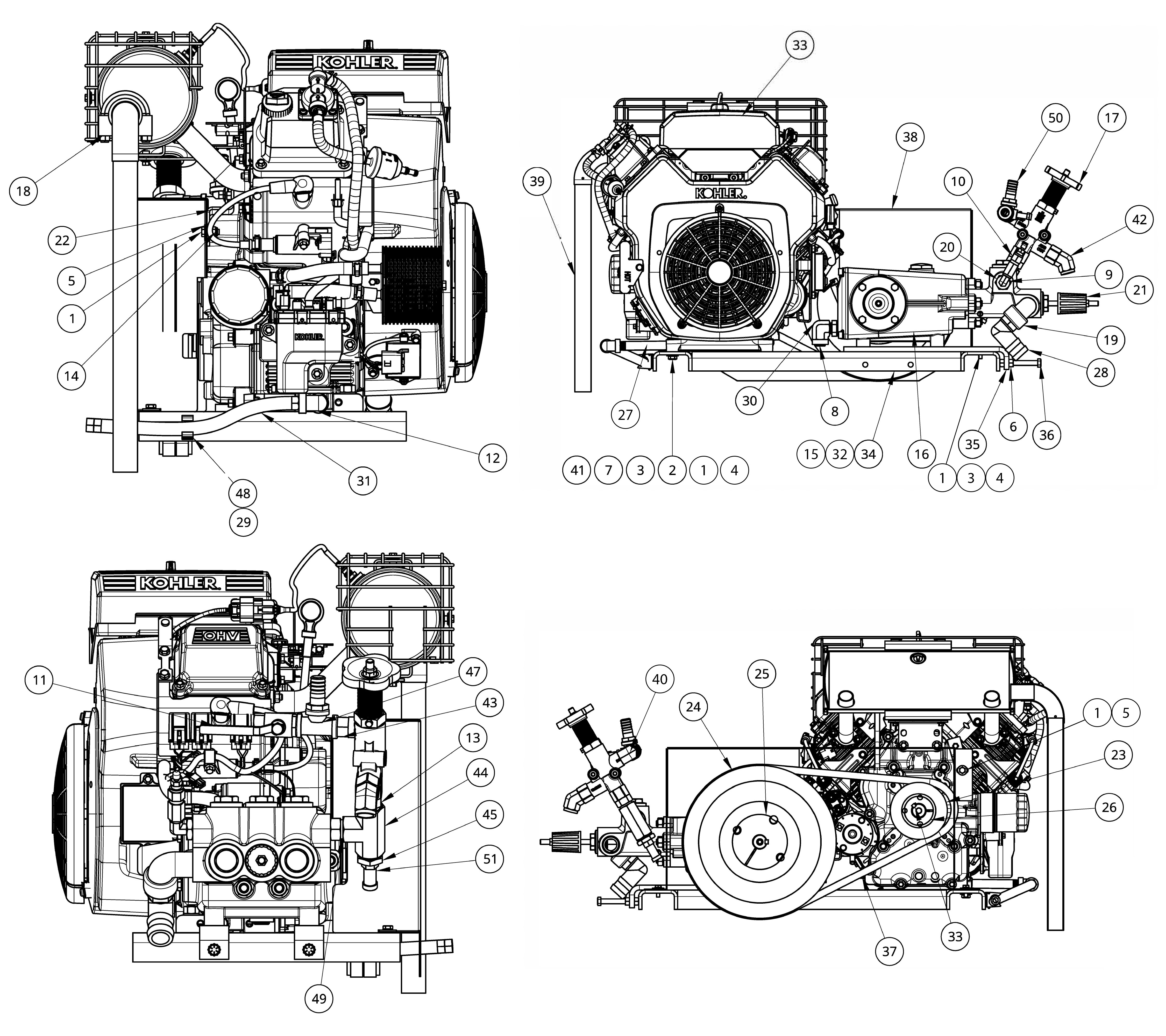

Power Pack Assembly - 75885000

ITEM

QUANTITY

PART NUMBER

DESCRIPTION

1

3

SCREW, HEX HD CAP 1/4-20 X 3/4

2

4

SCREW, HEX HD CAP 3/8-1 X 1-3/4

3

6

WASHER, FLAT 5/16" USS ZINC

4

2

WASHER, LOCK-SPLIT MEDIUM 1/4

5

2

WASHER, FLAT 1/4

6

4

3/8-16 HEX NUT ZINC PLTD

7

4

WASHER, FLAT 3/8 SAE ZINC PLTD

8

1

71101200

PLUG, INTERNAL HEX 1/2 NPT

9

1

ELBOW, 90 DEG MALE 1/4 X 1/8

10

1

VALVE, CHECK WITH AIR VALVE

11

1

VALVE, BALL 1/2"M & 1/2"F

12

1

ELBOW, 90 DEG FEMALE 3/8

13

1

NIPPLE, REDUCER 3/4 X 1/2 H.P.

14

1

NUT, NYLOCK LOCK 1/4-20

15

4

75780120

M12-1.75x20 HX C/S 8.8

16

1

PUMP, SPECK MP4124

17

1

UNLOADER, GIANT 22913AH

18

1

CLAMP, MUFFLER 1-1/4

19

1

ELBOW, ST 90 DEG 1" POLYPRO

20

1

75803400

BUSHING, 3/4" MNPT x 1/8 FNT

21

1

PULSATION PLUNGER ASSY

22

1

75819910

BELT GUARD SUPPORT 738/758

23

1

75820510

SHEAVE, DRIVE 2/5V4.4VT

24

1

75820510

SHEAVE, DRIVEN 2X 5V BELT 11.8 OD 3020 SERIES

25

1

75820620

BUSHING, 28MM BORE 8 X 3.3MM KEY 3020

26

1

75820710

BUSHING, 1.125 BORE 1/4 X 1/8 KEY 1610 SERIES

27

1

75823906

NIPPLE, 3/8" NPT X 5" LONG

28

1

75824600

ELBOW, 1 NPT X 1-1/4 HOSE BARB

29

1

75824600

SCREW, 1/4-20 X 1/2" BUTTON HD

30

1

75860280

ELBOW, 1/2 FNPT TO 1/2 MBSPP

31

1

75874590

OIL DRAIN HOSE, KOHLER (26.5 HP)

32

4

75880120

SCREW, M12-1.75 X 20 FLAT SOC C/S ZINC 10.9

33

1

ENGINE, 26.5HP EFI KOHLER

34

1

75885300

WELDMENT, 26.5 HP POWER PACK

35

2

75885330

PLATE, MOTOR MOUNT SLIDING TENSIONER

36

2

75885340

SCREW, 3/8"-16 X 3"

37

2

V-BELT, 5VX530 53" OL

38

1

75885401

26.5 HP BELT GUARD

39

1

75885800

PIPE, 26.5 HP EXHAUST TAIL

40

1

ELBOW, 90 DEG STREET 1/2 STEEL

41

4

77748000

NUT, STOVER LOCK 3/8-16 UNC

42

1

ELBOW, 45 DEG STREET 1/2 STEEL

43

1

NIPPLE, HEX 1/2" X 1/2"

44

1

79816100

TEE, 3/4 FPT STEEL

45

1

REDUCER BUSHING 3/4 X 1/4

46

1

79823400

KEY, 1/4 X 1/4 X 1-5/8" LG

47

1

TEE, 1/2 NPT BRASS

48

1

79932014

HOSE MOUNTING CLIP

49

1

NIPPLE, 3/4 NPT ZNC PLT STEEL

50

1

79959550

3/4" HOSEBARB X 1/2" MPT STR BR

51

1

Documents & Files Available for Download

Model 758 Trailer Jetter User Manual

Model 758 Trailer Jetter Service Manual
