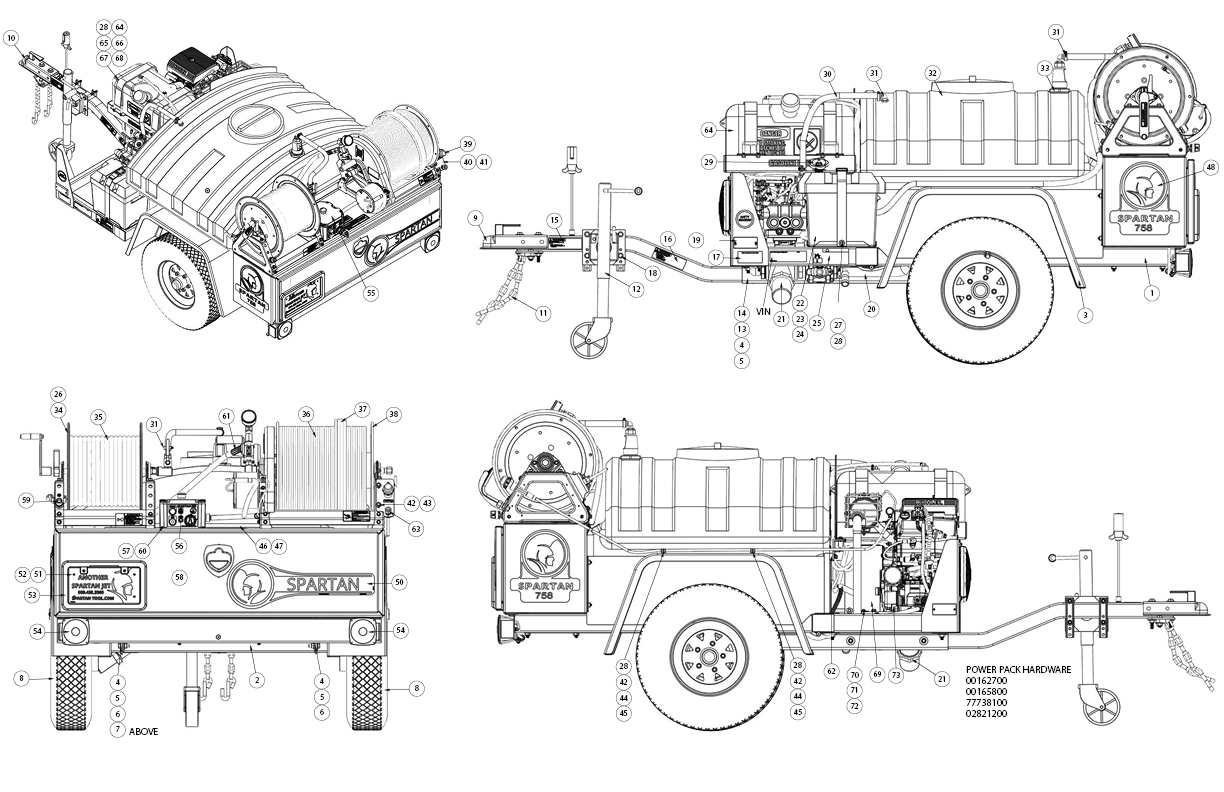

MODEL 758 TRAILER FINAL ASSEMBLY - 7580F000

MODEL 758 TRAILER FINAL ASSEMBLY - 7580F000

ITEM

QUANTITY

PART NUMBER

DESCRIPTION

1

74023150

FRAME, 758 TRAILER

2

73804300

3

77710500

4

73826900

1/2" USS HIGH-STRENGTH FLAT WASHER

5

77744800

1/2"-13 UNC STOVER LOCK NUT

6

79920145

SCREW, 1/2-13 X 1-1/4

7

72715100

CLAMP, HOSE 1-1/8 ID COATED

8

73803700

WHEEL

9

73828965

ASSY, HITCH TUBE

10

73803300

TONGUE PAINTED COUPLER

11

79960000

12

73852800

BOLT-ON JACK STAND

13

77769300

1/2"-20 UNF LOCK NUT

14

73808800

1/2"-20 X 4" G8 BOLT

15

79952400

DECAL, SAFETY CHAINS

16

79952300

DECAL, WHEEL & LUG NUTS

17

79952200

DECAL, 738/758 TIRE & LOADING

18

00162600

5/16" FLAT USS ZINC PLATED WASHER

19

03312001

#8-32 ZINC PLATED KEP NUT

20

77710200

1-1/4" X 8.5" SPIRAL SMALL HOSE

21

79811700

STRAINER, 1-1/2" FPT POLYPRO

22

77728900

RED CABLE CAP

23

79847800

BATTERY, DIESEL 875 CCA

24

75815300

MODIFIED BOX BATTERY

25

585463-01

DECAL, BATTERY

26

75867030

3/4" GHT SWIVEL 1/2"NPT ADAPTER

27

00113500

1/4"-20 X 1/2" HEX HEAD CAP SCREW

28

00165400

WASHER, LOCK-SPLIT MED. 1/4

29

75802800

30

79904497

HOSE, 3/4" CLEAR

31

77767600

CLAMP, HOSE 11/16

32

75813400

ASSY, WATER TANK - 758

33

73803800

ADAPTER 1-1/2" TANK

34

73815700

ASSY, FILL REEL

35

79944100

5/8" X 100' GARDEN HOSE

36

75864100

HOSE, 3/8" ID X 350' GREEN

37

73821500

HOSE, LEADER 3/8" X 15' ORANGE

38

75828600

ASSY, 758 HP REEL

39

74026400

THROTTLE CONTROL"

40

73838200

PLATE, THROTTLE"

41

75814000

DECAL, THROTTLE

42

79842200

CLAMP, HOSE 1/2

43

73821200

1/4"-20 NYLOCK LOCK NUT

44

77805100

BOLT, CARRIAGE 5/16-18 X 1

45

00113901

SCREW, HEX HEAD CAP 1/4"-20 X 1" ZNC

46

77739800

47

77739900

DECAL, WARNING REAR

48

75800100

DECAL, SPARTAN 758

ITEM

QUANTITY

PART NUMBER

DESCRIPTION

49

75870780

ASSY, RED FRAME TOOLBOX

50

75815400

51

03850100

NUT, HEX KEP 10-32 ZINC PLT

52

04723100

SCREW, MACHINE 10-32 X 5/8"

53

77722100

FRAME, LIGHTED LICENSE"

54

73826300

55

75829058

CONTROL BOX, 758 TRAILER

56

44002800

ASSY, PRESSURE SWITCH

57

02825100

1/4" FLAT WASHER

58

44249800

ADAPTER, PRESSURE SWITCH

59

79904492

3/4" MALE - 1/2" FEMALE GARDEN HOSE ADAPTER

60

82020100

1/4"-20 X 1" BUTTON HEAD SCREW

61

73808100

1/2" X 19" HP REEL TO HP PIPE HOSE

62

73815400

RUBBER SPACER

63

73816500

3/8 MALE - 3/8 FEMALE SWIVEL ADAPTER

64

75871600

8 GAL GAS TANK

65

77766300

DECAL, DANGER "NO SMOKING"

66

75802300

SHEET, GAS TANK MOUNT

67

75805400

ANGLE, GAS TANK

68

75815100

DECAL, GASOLINE ONLY

69

75885000

POWER PACK

70

00113700

1/4"-20 X 3/4" HEX HEAD CAP SCREW

71

77785200

MOUNT, MOTOR

72

02939000

5/16"-18 X 3/4" HEX CAP HEAD SCREW

73

03366300

WASHER, FLAT 3/8 SAE

74

75817800

ASSY, WIRE HARNESS-RELAY

75

73817300

WASH DOWN ACCESSORY PACKAGE

POWER PACK HARDWARE

ITEM

QUANTITY

PART NUMBER

DESCRIPTION

1

00162700

3/8" FLAT USS ZINC WASHER

2

00165800

WASHER, FLAT 3/8" USS

3

77738100

3/8"-16 X 1" CAP HEX HEAD SCREW

4

02821200

1/4"-20 NYLOCK JAM NUT

IN TOOLBOX

ITEM

QUANTITY

PART NUMBER

DESCRIPTION

1

02752501

TOOLBOX W/ TOTE TRAY

2

44225800

1/4"-20 NYLOCK JAM NUT

3

75800800

NOZZLE, CLOSED 3000 PSI

4

75800900

NOZZLE, OPEN 3000 PSI

5

75866500

ASSY, 3/8" ANTI-TURNAROUND

6

77799800

HANDGUN LANCE VNOZZLE ASSY

7

77799825

HOSE ASSY, WASH DOWN KIT

8

77800600

ASSY, HOSE GUARD 2"

9

77815800

NOZZLE, 1/4" DOMED CLOSED

Documents & Files Available for Download

Model 758 Trailer Jetter User Manual
