SKU: 75760000
Spartan Tool Defender Combi Unit - 75760000
REQUEST PRODUCT INFORMATION
- Availability:
- In Stock
- Pipe Sizes:
- Up to 13" diameter for jetting
- Jetting Applications:
- grease trap, surface water drain, storm drains
- Pressure (PSI):
- 3000
- Flow (GPM):
- 10
- Hoses (included):
- 260' of 1/2" cleaning hose
- Hoses (included):
- 115' of filling hose
- Engine:
- Kubota D1105 24hp diesel engine
- Suction Pump:
- Gardner Denver SLS54V (5400 lpm suction)
- Tank Capacity:
- 396 gal (264 gal waste capacity; 132 gal clean capacity)
- Warranty:
- 2-Year Manufacturer Warranty
- Dimensions for Skid Mount:
- 125.5” L x 81” W x 60” H
- Approx. Dry Weight:
- 3440 lbs
- Skid Mount Approx. Wet Weight:
- 6750 lbs
- Recommended Chassis:
- F-450 169WB DRW chassis with 15k to 16.5k GVRW
- Dimensions with Trailer:
- 160” L (without 2-5/16” coupler) x 101” W x 82” (when frame is level)
- Trailer GVWR:
- 9460 lbs
- Trailer Defender Dry Weight:
- 3700 lbs
- Trailer Defender Wet Weight:
- 7200 lbs
- Hoses (included):
- 82' of suction hose
PRODUCT DOCUMENTS
Find Your Territory Manager

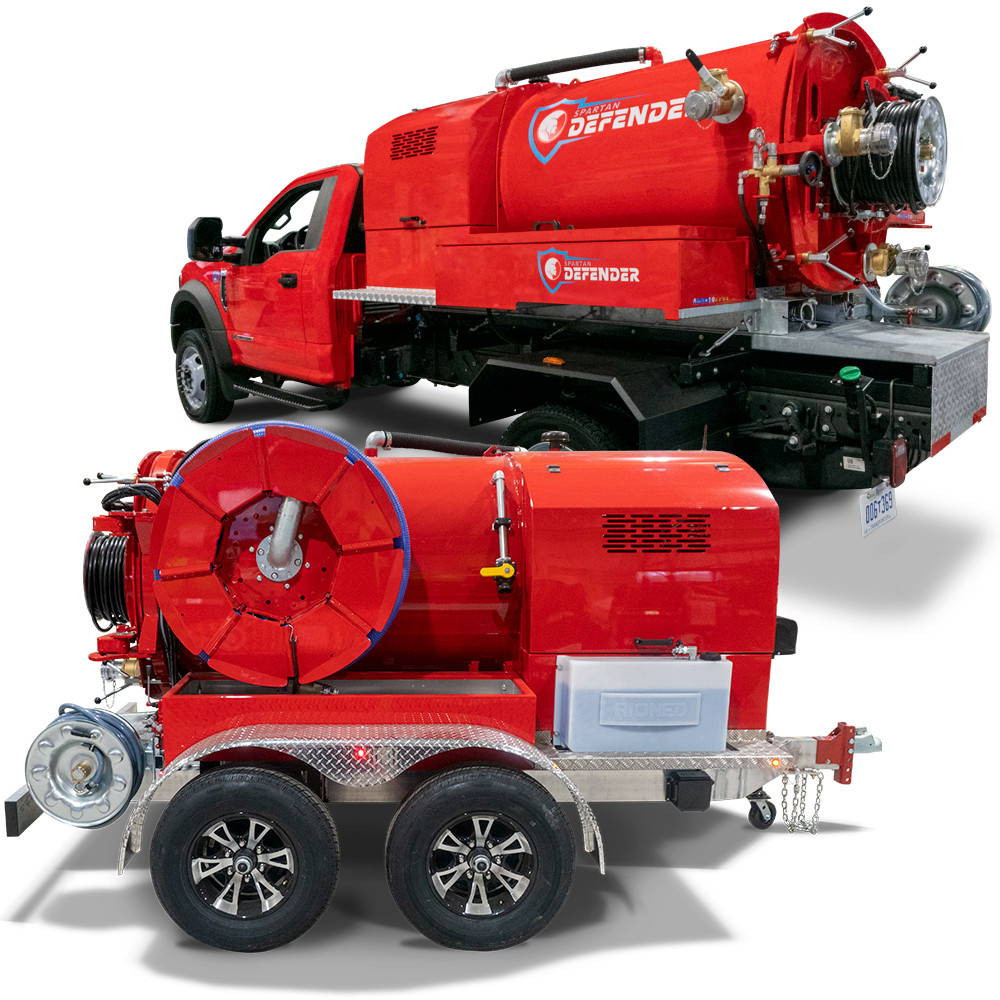

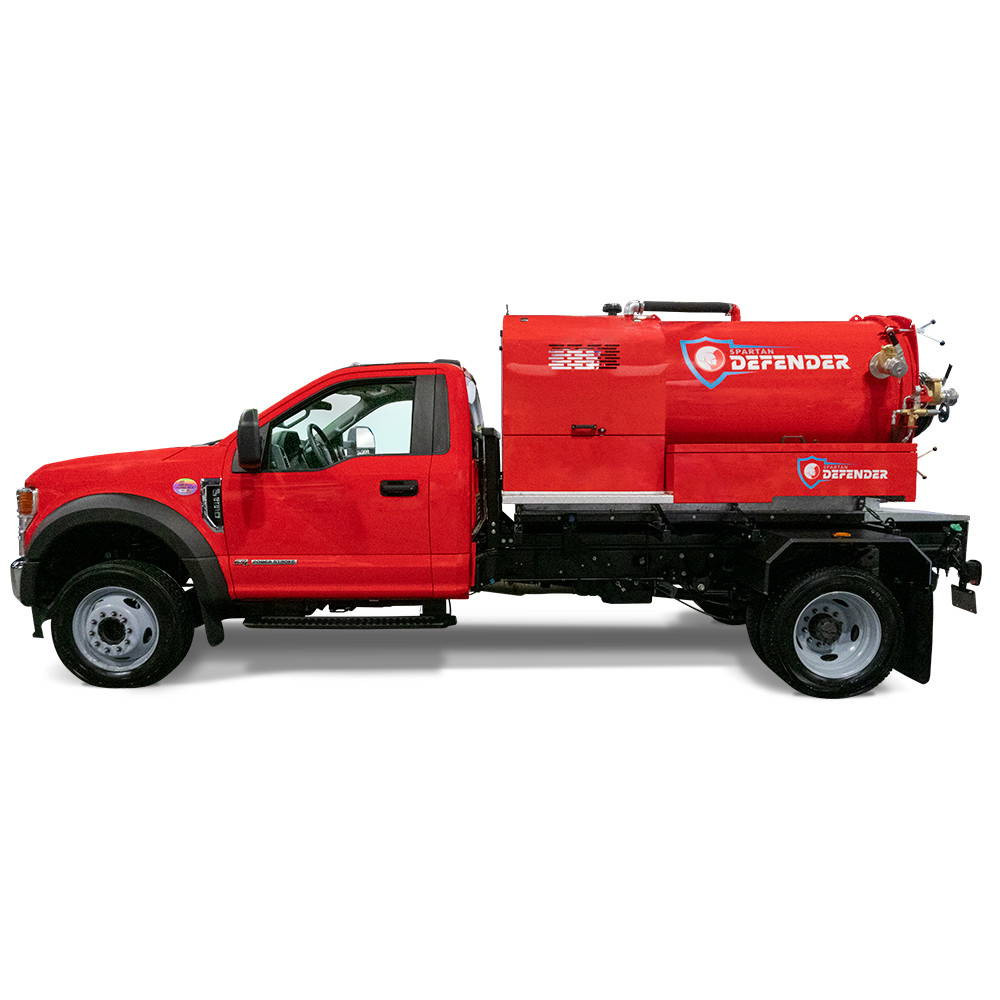

Spartan Tool Defender Combi Unit - 75760000
Don't just clear the line, defend it.
The Spartan Defender combi unit is a complete all-in-one skid mounted jetvac system. Effective jetting coupled with a powerful vacuum pump puts everything you need to service and clean lines in one compact footprint. Remove waste from live sewers, perform grease trap maintenance, maintain and clean small septic tanks, and jet and clean lines. The Defender’s compact chassis makes it ideal for city or restricted access works.
FEATURES
- Delivers 3,000 PSI at 10 GPM jetting power
- Gardner Denver SLS54V suction pump delivers 5,400 lpm suction
- Pivoting high pressure hose reel
- Suction hose reel connected to the waste tank
- Reel accommodates up to 262' of 1/2" high pressure hose
- Kubota D1105 24HP Diesel engine
- 396 gallons total tank capacity
- 264 gallons waste (grey water) capacity
- 132 gallons jetting (clean water) capacity
- Run dry protection with overrun
- Econtrol Digital Display
- Riomote 9 channel radio remote control
- Side mounted suction hose reel with direct connection to waste tank
- Engine and pump compartment
- Side mounted storage boxes
SAFETY
- E-stop for emergency shut down
- Pressure regulator / unloader valve
- Tank overflow protection on both waste and clean water tanks
