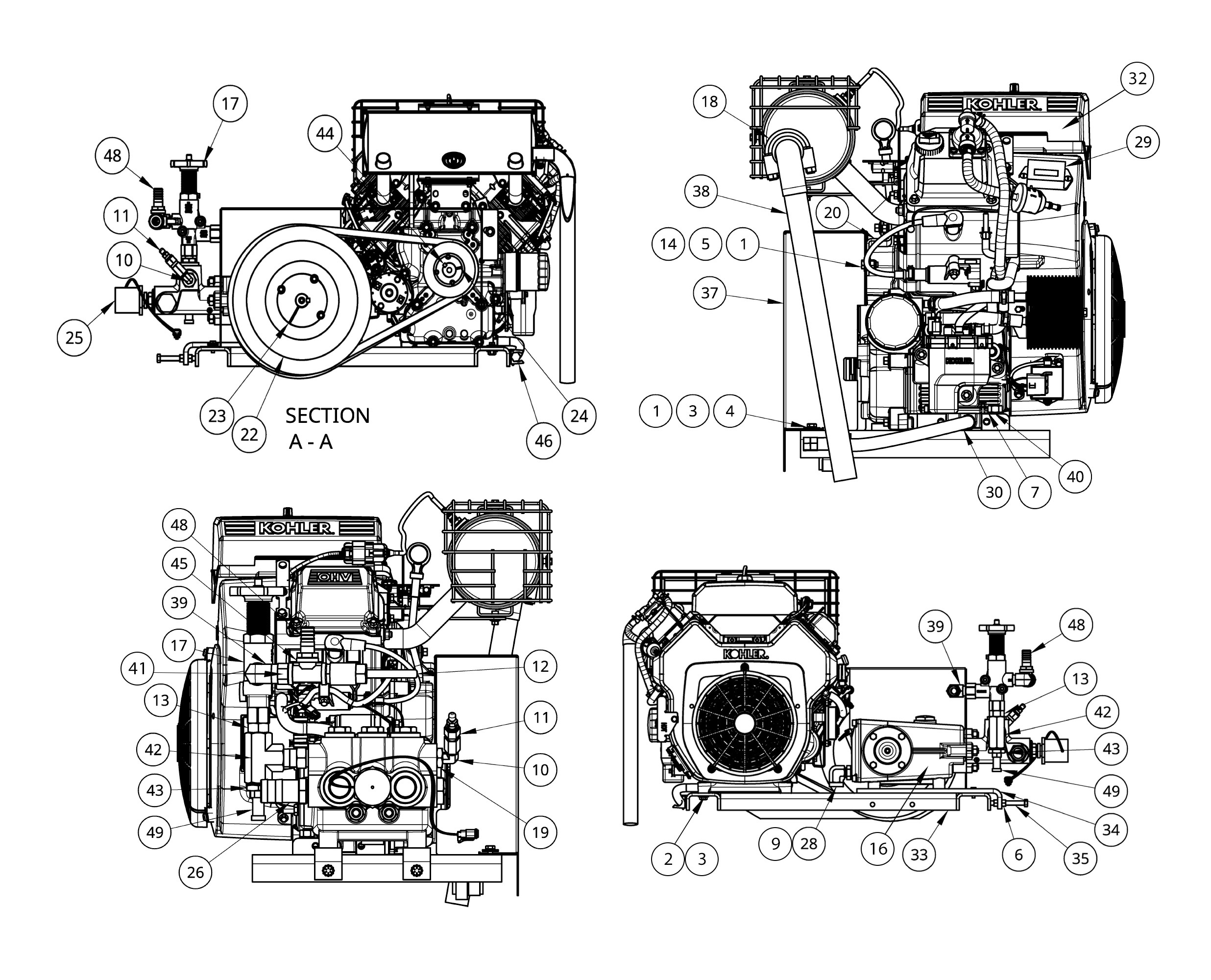

SOLDIER POWER PACK ASSEMBLY - 75886000

POWER PACK ASSEMBLY - 75886000

ITEM

QUANTITY

PART NUMBER

DESCRIPTION

1

3

SCREW, CAP HEX HD 1/4-20 X 3/4

2

4

SCREW, CAP HEX HD 3/8-16X1-3/4

3

6

WASHER, FLAT 5/16" USS ZINC

4

2

WASHER, LOCK-SPLIT MEDIUM 1/4

5

2

WASHER, FLAT 1/4

6

1

3/8"-16 ZINC PLATED HEX NUT

7

4

WASHER, FLAT 3/8 SAE ZINC PLATED

8

2

SCREW, MACH PN PH 10-32 X 5/8

9

1

71101200

PLUG, INTERNAL HEX 1/2 NPT

10

1

ELBOW, 90 DEG. MALE 1/4 X 1/8

11

1

VALVE, CHECK WITH AIR VALVE

12

1

VALVE, BALL 1/2"M X 1/2"F

13

1

ELBOW, 90 DEG FEMALE 3/8

14

1

NIPPLE, REDUCER 3/4 X 1/2 H.P.

15

1

NUT, NYLOK LOCK 1/4-20

16

4

75780120

M12-1.75X20HX C/S8.8

17

1

PUMP, SPECK MP4124

18

1

UNLOADER, GIANT

19

1

CLAMP, MUFFLER 1-1/4"

20

1

75803400

BUSHING, RED. 3/4"MNPT X 1/8FNT

21

1

75819910

BELT, GUARD SUPPORT 738/758

22

1

75820510

SHEAVE, DRIVE 2/5V4.4T

23

1

75820610

SHEAVE, DRIVEN 2X5V BELT 11.8 OD

24

1

75820620

BUSHING, 28MM BORE 8 X 3.3MM KEY 2020

25

1

75820710

BUSHING, 1.125 BORE 1/4 X 1/8 KEY

26

1

75823906

NIPPLE, 3/8" NPT X 5" LONG

27

1

28

1

75843400

BARB, HOSE 1" MNPT TO 1-1/4" HB

29

1

75852030

SCREW, 1/4-20 X 1/2" BUTTON HB

30

1

75860280

ELBOW, 1/2 FNPT TO 1/2 MBSPP

31

1

75874590

OIL DRAIN HOSE, KOHLER (26.5 HP)

32

4

75880120

SCREW, M12-1.75 X 20 FLAT SOC C/S ZINC 10.9

33

1

ENGINE, 26.6HP EFI KOHLER

34

1

75885300

WELDMENT, 26.5HP POWER PACK

35

2

75885330

PLATE, MOTOR MOUNT SLIDING TENSIONER

36

2

75885340

SCREW, 3/8"-16 X 3"

37

2

V-BELT, 5VX530, 53"O.L.

38

1

75885401

26.5 HP BELT GUARD

39

1

75885800

PIPE, 26.5 EXHAUST TRAIL

40

2

ELBOW, 90 DEG STREET 1/2 STEEL

41

4

77748000

NUT, STOVER LOCK 3/8-16 UNC

42

1

NIPPLE, HEX 1/2" X 1/2"

43

1

79816100

TEE, 3/4 FPT STEEL

44

1

REDUCER BUSHING 3/4 X 1/4

45

1

79823400

KEY, 1/4 X 1/4 X 1-5/8" LG

46

1

TEE, 1/2 NPT BRASS

47

1

79932014

HOSE MOUNTING CLIP

48

1

NIPPLE, 3/4 NPT ZNC PLT STEEL

49

1

79959550

3/4" HOSEBARB X 1/2" MPT STR BR

50

1

Documents & Files Available for Download

Soldier Trailer Jetter Service Manual
